The table listed below is correct and up-to-date to the best of our knowledge and the information is provided as a reference only. However, if there is any concern about the turbocharger on your truck, we can verify the correct part with the engine serial number (ESN). Your ESN can either be found in the owner’s manual or on the dataplate located on the engine. If you have trouble locating your dataplate, Diesel Parts Direct has a few illustrations that may help you. If neither option is available to you, we may still be able to help you.
Why is the ESN so important?

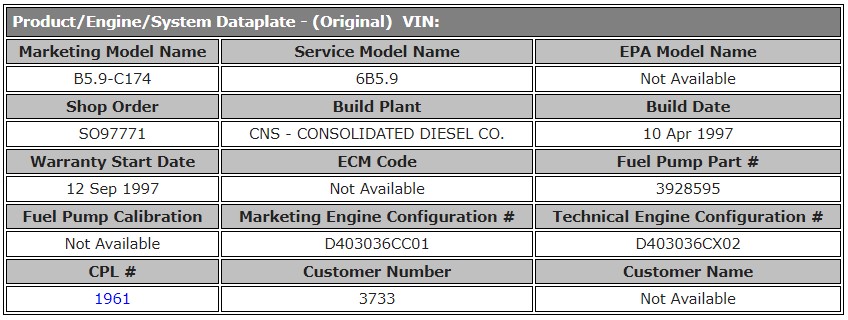

Your engine serial number provides the service model name, build date, and the critical parts list (CPL) as you can see in the screenshot below.
Cummins Quickserve Dataplate Screenshot

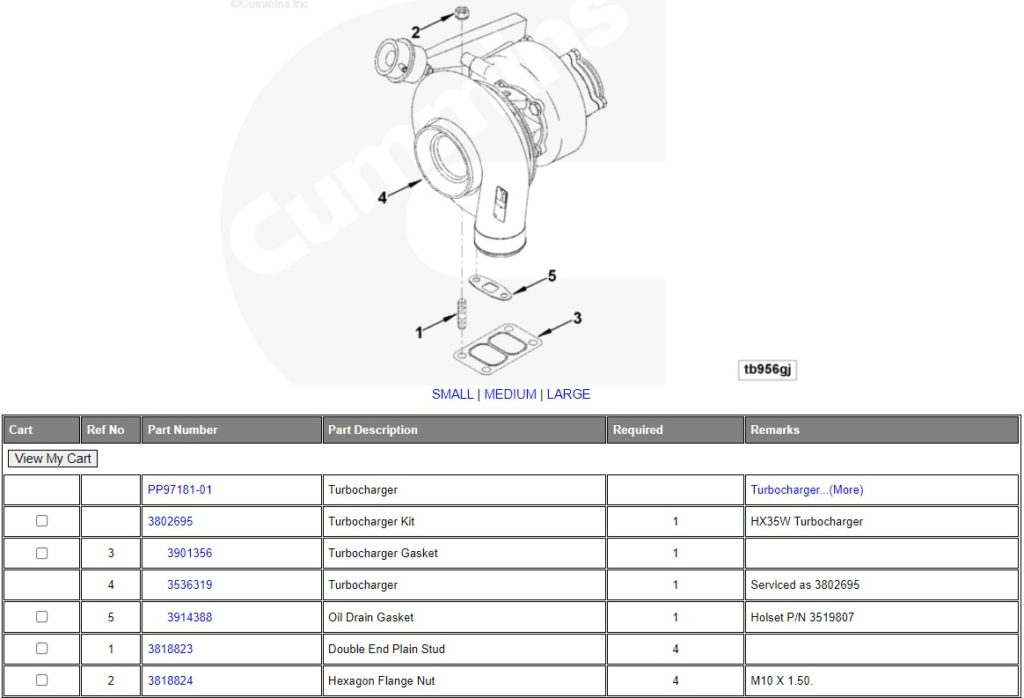

We are also able to see the available parts based on your serial number including the turbocharger as shown in the screenshot below.
Cummins Quickserve turbocharger breakdown screenshot
| Engine | Application | Year / Engine | Cross-Reference | New # | Reman # |
|---|---|---|---|---|---|
| 6.7L Diesel | Ram 2500, Ram 3500, Ram 4500, Ram 5500 (Fits Some Cab & Chassis) | 2013-2018 24V, Cummins ISB | 3794756, 4309356, 4352218, 5326055, 5327045, 532704500, 5501330, 68210648AA, 68212738AA, 68297874AA, 68321377AA, 68253983AA Note For Cab & Chassis Applications: Verify Replacement, Use Cummins Engine Serial Number. Some Vehicles Will Use #5326057H | 5326058H | 5326058HX |
| 6.7L Diesel | Ram 2500, Ram 3500, Ram 4500, Ram 5500 (Cab & Chassis Only) | 2013-2018 24V, Cummins ISB | 5326054, 5326057, 5327046, 532704600, 5326057HX, 5501329 | 5326057H | 5326057HX |
| 6.7L Diesel | Ram 2500, Ram 3500, Ram 4500, Ram 5500 (Fits Some Cab & Chassis) | 2007-2012 24V, Cummins ISB | 3770973, 3799840H, 532234400, 5322344, 5325950, 68027068AA, 68031095AA, 68003401AA, 68032290AA, 68032290AB, 68032290AC, 68048234AA, 68048234AB, 68048234AC, 68048234AD, 68048234AE, 68048234AF, 68048234AG, R8048234AE, R8048234AF, R8048234AG, R8048234AH, R8048234AI | 5325950H | 5325950HX |
| 5.9L Diesel | Ram 2500, Ram 3500 Automatic and Manual Transmissions | 2004.5-2009* 24V, Cummins ISB | 05135784AA, 05135784AB, 05143256AA, 4037001, 4037002, 4043600, 4089673, 408979700, R5135784AB, R5143256AA *Some 2008-2009 ST applications utilized a 5.9L option, Please use part number for correct verification. | 4036836H | 4036836HX |
| 5.9L Diesel | Ram 2500, Ram 3500 Automatic and Manual Transmissions | 2003-2004 24V, Cummins ISB, B-Series | 05086863AA, 05086863AB, 3599810, 3599811, 4035044, 4089392, 408939200, R5086863AA, R5086863AB | 4033667H | - |
| 5.9L Diesel | Ram 2500, Ram 3500 Automatic Transmissions | 2000-2002 24V, Cummins ISB, 6BTA, B-Series | 05017787AA, 05017787AB, 05017787AC, 05017787AD, 05017787AE, 3592811, 3800973, 4036239, 4089642, 408964200, R5017787AE | 3596393H | 4036239 |
| 5.9L Diesel | Ram 2500, Ram 3500 Manual Transmissions | 1999-2002 24V Cummins ISB, 6BTA, B-Series | 3592766, 3592767, 3774569, 3800799, 380079900, R5017509AA | 3592767H | - |
| 5.9L Diesel | Ram 2500, Ram 3500 Automatic Transmissions | 1999 24V Cummins ISB, 6BTA, B-Series | 05014203AA, 3590104, 3590105, 3774570, 3800397, 380039700, R5014203AA | 3590105H | - |
| 5.9L Diesel | Ram 2500, Ram 3500 Automatic and Manual Transmissions | 1998.5 24V Cummins ISB, 6BTA, B-Series | 3539343, 3539344, 3802946, 380294600 | 3539344H | - |
| 5.9L Diesel | Ram 2500, Ram 3500 Automatic Transmissions | 1996-1998 12V, Cummins 6BT | 05010276AA, 3532490, 3532491, 3534919, 3534920, 3538414, 3538415, 3539369, 3539370, 3802678, 3802841, 3802992, 380299200, 4856400 | 3539370H | - |
| 5.9L Diesel | Ram 2500, Ram 3500 Manual Transmissions | 1996-1998 12V, Cummins 6BT | 05010278AA, 3536160, 3539373, 3539374, 3802809, 380299400, 3802994, 4864283 | 3539374H | - |
| 5.9L Diesel | Ram 2500, Ram 3500 Automatic and Manual Transmissions | 1994-1995 12V, Cummins 6BT Wastegated | 3533320, 3534333, 3535833, 3539911, 3539912, 3802204, 3802839 | 3539912H | - |
| 5.9L Diesel | Ram 2500, Ram 3500 Automatic and Manual Transmissions | 1992-1993 12V, Cummins 6BT Non-Wastegated | 3531456, 3531696, 353181000, 3802391, 3802418, 4728700 | 3531810H | 3531810 |
| 5.9L Diesel | Ram 2500, Ram 3500 Automatic and Manual Transmissions | 1991-1993 12V, Cummins 6BT Non-Wastegated | *3528894, 3528895, *3531038, 3532210, 3802233, 380223300, 3802349 *interchangeable with 3531696 | 3531038H | - |
| 5.9L Diesel | Ram 2500, Ram 3500 Automatic and Manual Transmissions | 1988-1990 12V, Cummins 6BT Non-Wastegated | 3526739, 3526740, 352674000, 3528771, 3802146, 3802147, 3802148, 3802302, 4728036 | 3526740H | - |
OEM & Aftermarket
We have several OEM and aftermarket turbocharger options for your Ram truck. We strive to provide a quote on the phone, but sometimes our vendors have turbos earmarked for “Call for Availability” and that limits our ability for an instant quote. We work hard to find you the best price point possible.
